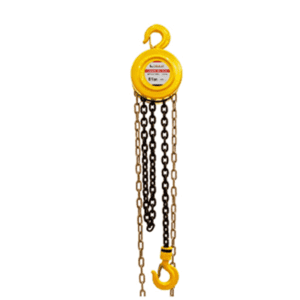

Long Jump Chain Pulley Blocks
Product Introduction:
- Chinese round models
- Low effort to lift maximum load

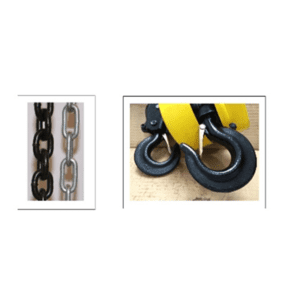

- Premium grade alloy load chain and zinc plated hand chain as standard
- Drop forged and expertly heat treated hooks for great strenght and long wearing
- Capacity ranges from 0.5t to 20t, heavy duty 30t, 50t is available
Product terminal parameters
| Model | HSC-0.5 | HSC-1 | HSC-1.5 | HSC-2 | HSC-3 | HSC-5 | HSC-10 | HSC-15 | HSC-20 | ||
| Capacity | (TON) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | |
| Standard Lift | (M) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Running Test Load | (KN ) | 7.5 | 15 | 22.5 | 30 | 45 | 75 | 125 | 200 | 250 | |
| Effort request to lift rated load | (N) | 225 | 309 | 343 | 314 | 343 | 383 | 392 | 392 | 392 | |
| Diameter of load chain | (MM) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | 10 | |
| Standard of load chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 6 | 8 | ||

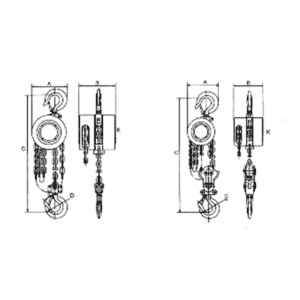

| A | (MM) | 120 | 142 | 178 | 142 | 178 | 210 | 358 | 400 | 580 | |
| B | (MM) | 108 | 122 | 139 | 122 | 139 | 162 | 162 | 196 | 189 | |
| C | (MM) | 315 | 335 | 435 | 470 | 555 | 720 | 820 | 920 | 1040 | |
| D | (MM) | 35 | 40 | 45 | 50 | 55 | 65 | 85 | 110 | 110 | |
| K | (MM) | 23 | 26 | 29 | 34 | 37 | 41 | 50 | 80 | 80 | |
| Net Weight | (KG) | 8 | 10 | 16 | 14 | 24 | 36 | 68 | 117 | 155 | |
| Packaging Measurement | (CM) | 28X21X17 | 30X24X18 | 34X29X20 | 33X25X19 | 38X30X20 | 45X35X24 | 62X50X28 | 70X45X75 | 70X46X75 | |
| Extra wt/m | (kg) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 14.1 | 19.4 | |
