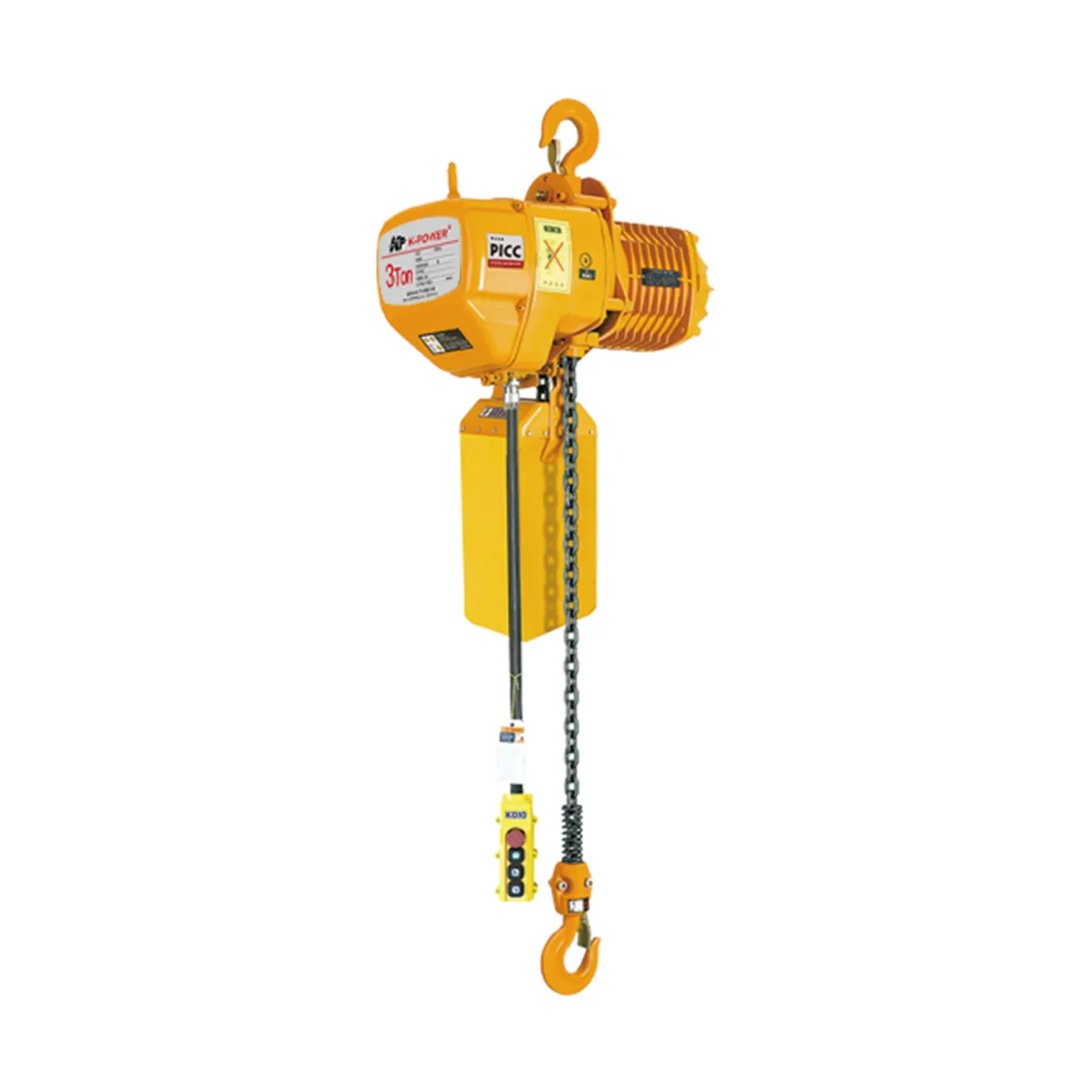

A compact motorized hoist with hook suspension, designed for safe and efficient fixed‑point lifting.
| Model | 0.5AF | 1.0AF | 1.0BF | 2.0AF | 2.0BF | 3.0AF | 3.0BF | 5.0AF | 7.5AF | 10AF | 15AF | 20AF | 25AF | 30AF | 35AF | ||
| Capacity | ton | 0.5 | 1.0 | 1.0 | 2.0 | 2.0 | 3.0 | 3.0 | 5.0 | 7.5 | 10 | 15 | 20 | 25 | 30 | 35 | |
| Standard lift | m | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Test load | kn | 6.25 | 12.5 | 12.5 | 25 | 25 | 37.5 | 37.5 | 62.5 | 94 | 125 | 187.5 | 250 | 312.5 | 375 | 437.5 | |
| Motor Power | Sing | Kw | 0.75,0.8 | 1.5,1.8 | 0.75,0.8 | 3.0,3.0 | 1.5,1.8 | 3.0,3.0 | 3.0,3.0 | 3.0,3.0 | 3.0,3.0 | 3.0,3.0X2 | 3.0X2,3.0X2 | 3.0X2,3.0X2 | 3.0X2,3.0X2 | 3.0X2,3.0X2 | 3.0X2,3.0X2 |
| Dual | 0.27 | 0.6 | 0.27 | 1.0 | 0.6 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0X2 | 1.0X2 | 1.0X2 | 1.0X2 | 1.0X2 | 1.0X2 | ||
| No. of Chain | 1 | 1 | 2 | 1 | 2 | 1 | 2 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 16 | ||
| Dia of Chain | mm | 6.3 | 7.1 | 6.3 | 10 | 7.1 | 11.2 | 10 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | |
| Lifting speed | Sing | m/min | 6.8,6.9 | 6.6,6.9 | 3.4,3.5 | 6.6,6.8 | 3.3,3.3 | 5.4,5.4 | 4.4,4.5 | 2.8,2.7 | 1.8,1.8 | 2.7,2.7 | 1.8,1.8 | 1.4,1.5 | 1.1,1.2 | 0.9,1.0 | 0.7,0.7 |
| Dual | 2.3 | 2.3 | 1.2 | 2..3 | 1.1 | 1.8 | 1.5 | 0.9 | 0.6 | 0.9 | 0.6 | 0.6 | 0.4 | 0.3 | 0.25 | ||
| Net Weight | kg | 47 | 61 | 52 | 115 | 73 | 112 | 131 | 151 | 266 | 335 | 451 | 546 | 624 | 1143 | 1385 | |
| Extra wt/m | Kg | 0.81 | 1.1 | 1.62 | 2.3 | 2.2 | 2.8 | 4.7 | 5.6 | 8.4 | 11.2 | 17 | 22 | 28 | 31 | 44.8 | |
