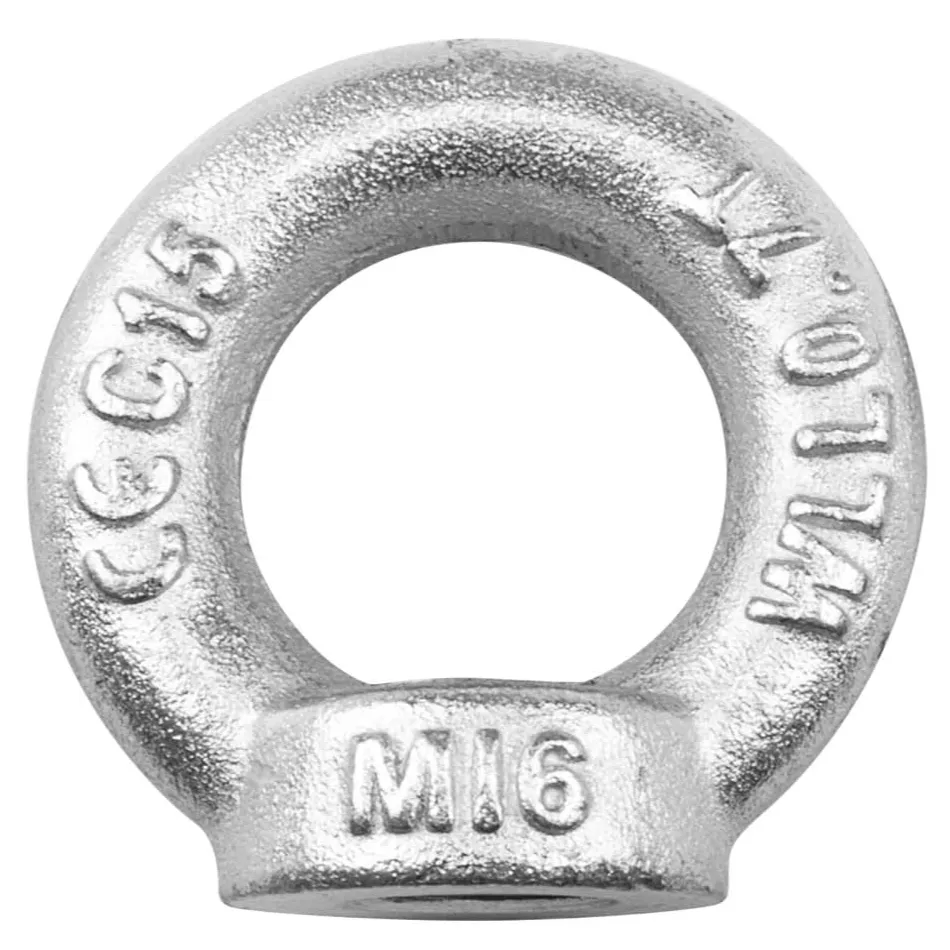

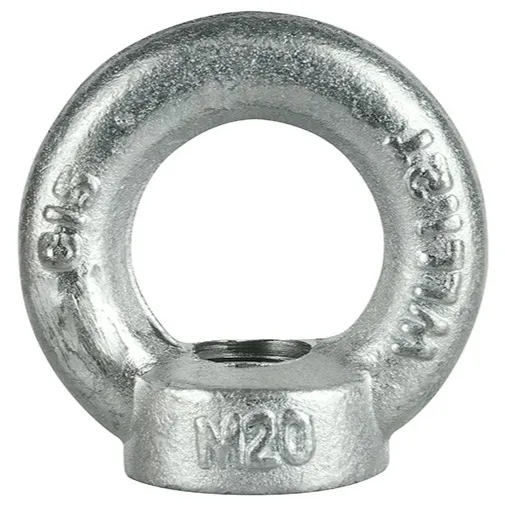

The Eye Nut DIN 580 is a precision‑engineered lifting accessory designed for secure attachment points in hoisting and rigging applications. Manufactured to DIN 580 standards, it ensures consistent quality, strength, and safety. The eye nut can be easily screwed onto threaded bolts or rods, providing a reliable lifting eye for hooks, chains, and slings. Made from high‑grade steel with a corrosion‑resistant finish, it is suitable for industrial, construction, and marine environments where dependable load handling is essential.
Key Features:
The Eye Nut DIN 580 combines strength, precision, and convenience, making it a trusted choice for professionals requiring secure lifting points.
A DIN 580 standard eye nut for secure lifting point connections in rigging and hoisting tasks.
| Item No | Weight/Kg | WLL/T (4:1) | Dmm | èmm | Lmm | |
| WLL 0° | WLL 90° | |||||
| M6 | 0.049 | 0.4 | 0.15 | 36 | 20 | 36 |
| M8 | 0.05 | 1 | 0.4 | 36 | 20 | 36 |
| M10 | 0.09 | 1 | 0.4 | 45 | 25 | 48 |
| M12 | 0.16 | 2 | 0.75 | 54 | 30 | 53 |
| M16 | 0.24 | 4 | 1.5 | 63 | 35 | 62 |
| M20 | 0.36 | 6 | 2.3 | 72 | 40 | 71 |
| M24 | 0.72 | 8 | 3.2 | 90 | 50 | 90 |
| M30 | 1.32 | 12 | 4.5 | 108 | 60 | 109 |
| M36 | 2.08 | 16 | 7 | 126 | 70 | 128 |
| M42 | 3.11 | 24 | 9 | 144 | 80 | 147 |
| M48 | 5.02 | 32 | 12 | 166 | 90 | 168 |
