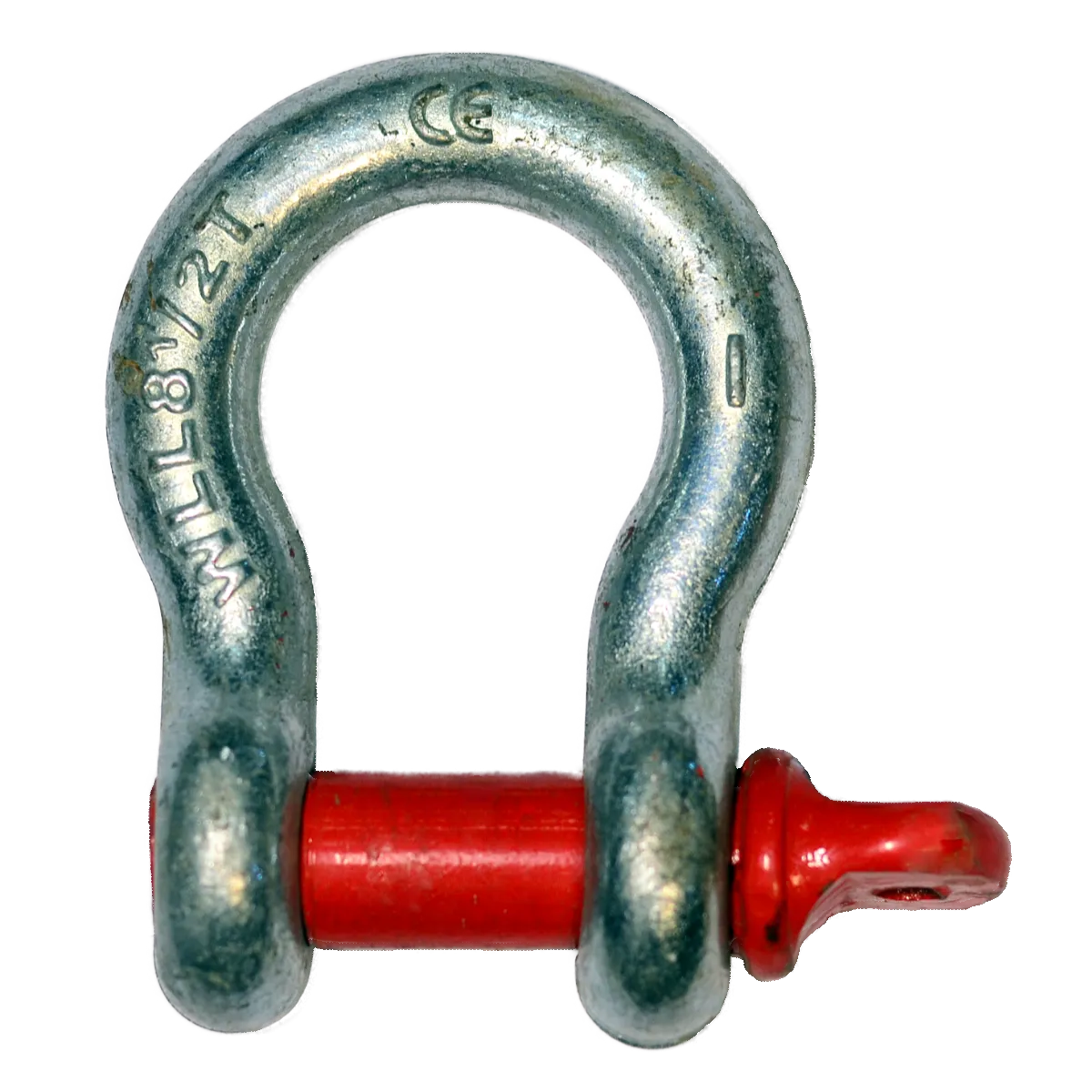

The G80 Alloy Steel Bow Shackle Screw Pin Type is a heavy‑duty rigging accessory designed for secure load connections in lifting, hoisting, and anchoring applications. Its bow shape provides extra space for multiple sling or rope attachments, while the screw pin design allows quick installation and removal. Manufactured from Grade 80 alloy steel, the shackle offers superior strength, durability, and resistance to wear. Finished with corrosion protection, it ensures long service life even in demanding industrial, construction, and marine environments.A Grade 80 alloy steel bow shackle with screw pin, ideal for secure multi‑sling lifting connections.
| Nominal Size (in.) | WLL(t) | Weight Each (kg) | Dimensions(mm) |
Tolerance +/- |
|||||||||||
| A | B | C | D | E | F | G | H | L | M | P | C | A | |||
| 3/16 | 0.3 | 0.03 | .2 | 14.2 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 | 1.50 | 1.50 |
| 1/4 | 0.5 | 0.05 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 | 1.50 | 1.50 |
| 5/16 | 0.75 | 0.09 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 5.60 | 42.2 | 7.85 | 3.30 | 1.50 |
| 3/8 | 1 | 0.14 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.0 | 6.35 | 51.5 | 9.65 | 3.30 | 1.50 |
| 7/16 | 1.5 | 0.17 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.2 | 3.30 | 1.50 |
| 1/2 | 2 | 0.33 | 20.6 | 16.0 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 3.30 | 1.50 |
| 5/8 | 3.25 | 0.62 | 26.9 | 19.1 | 60.5 | 16.0 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85.0 | 17.5 | 6.35 | 1.50 |
| 3/4 | 4.75 | 1.07 | 31.8 | 22.4 | 71.5 | 19.1 | 51.0 | 46.0 | 89.0 | 126 | 12.7 | 101 | 20.6 | 6.35 | 1.50 |
| 7/8 | 6.5 | 1.64 | 36.6 | 25.4 | 84.0 | 22.4 | 58.0 | 53.0 | 102 | 148 | 12.7 | 114 | 24.6 | 6.35 | 1.50 |
| 1 | 8.5 | 2.28 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 | 6.35 | 1.50 |
| 1-1/8 | 9.5 | 3.36 | 46.0 | 31.8 | 108 | 29.5 | 74.0 | 68.5 | 131 | 190 | 16.0 | 142 | 31.8 | 6.35 | 1.50 |
| 1-1/4 | 12 | 4.31 | 51.5 | 35.1 | 119 | 32.8 | 82.5 | 76.0 | 146 | 210 | 17.5 | 156 | 35.1 | 6.35 | 1.50 |
| 1-3/8 | 13.5 | 6.14 | 57.0 | 38.1 | 133 | 36.1 | 92.0 | 84.0 | 162 | 233 | 19.1 | 174 | 38.1 | 6.35 | 3.30 |
| 1-1/2 | 17 | 7.80 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92.0 | 175 | 254 | 20.6 | 187 | 41.1 | 6.35 | 3.30 |
| 1-3/4 | 25 | 12.6 | 73.0 | 51.0 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25.4 | 231 | 57.0 | 6.35 | 3.30 |
| 2 | 35 | 20.4 | 82.5 | 57.0 | 197 | 53.0 | 146 | 122 | 253 | 348 | 31.0 | 263 | 60.0 | 6.35 | 3.30 |
| 2-1/2 | 55 | 38.9 | 105 | 70.0 | 267 | 69.0 | 184 | 145 | 327 | 453 | 35.1 | 330 | 79.5 | 6.35 | 6.35 |
| 3 | 85 | 66 | 127 | 83 | 330 | 76 | 200 | 165 | 365 | 540 | 41 | 419 | 97 | 6.35 | 6.35 |
| 3-1/2 | 120 | 108 | 133 | 96 | 372 | 92 | 229 | 203 | 419 | 600 | 46 | 482 | 105 | 6.35 | 6.35 |
| 4 | 150 | 150 | 140 | 108 | 368 | 104 | 254 | 229 | 468 | 620 | 50 | 502 | 116 | 6.35 | 6.35 |
