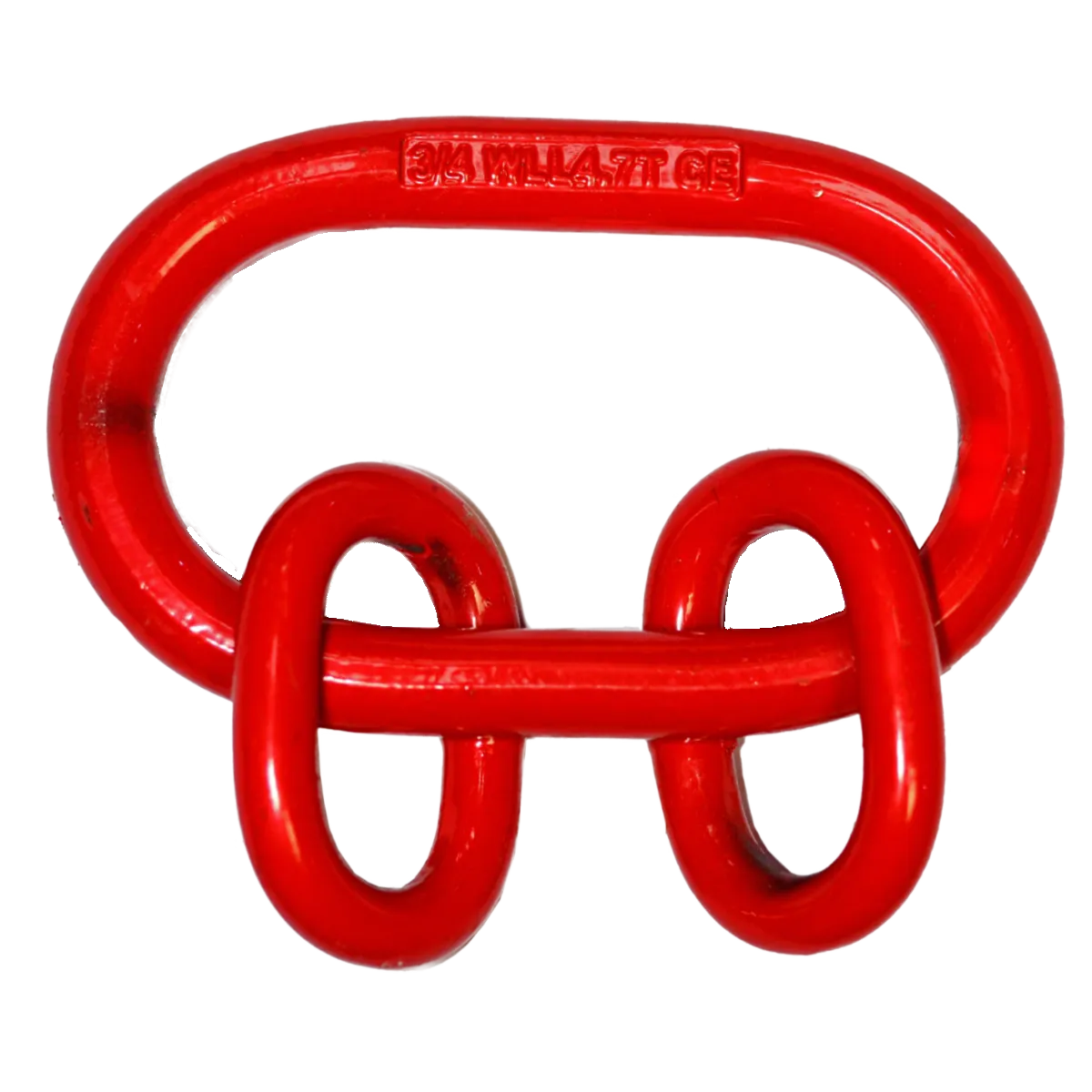

The G80 Alloy Steel Master Link Assembly is a key lifting component designed for use with chain slings and rigging systems. Its large oval master link and welded intermediate links provide secure multi‑leg sling connections, ensuring stability and safety during heavy‑duty lifting operations. Manufactured from high‑strength alloy steel and finished for corrosion resistance, this assembly is built to withstand demanding industrial, construction, and marine environments.A durable alloy steel assembly with master and intermediate links, designed for secure multi‑leg sling connections in heavy lifting.
Master Link Assembly
| Item No | Weight/Kg | Chain (4:1) | Chain (5:1) | A | B | D | a | b | d | s | ||
| WLL/T | B.L/T | WLL/T | B.L/T | |||||||||
| 1/2 | 0.82 | 2.4 | 9.6 | 2 | 10 | 100 | 60 | 14 | 85 | 40 | 12 | 6 |
| 11/16 | 1.60 | 3.2 | 12.8 | 2.5 | 12.5 | 160 | 90 | 18 | 100 | 60 | 14 | 7.6 |
| 3/4 | 1.95 | 5 | 20 | 4 | 20 | 160 | 90 | 20 | 100 | 60 | 14 | 7.6 |
| 7/8 | 3.16 | 8 | 32 | 6.4 | 32 | 180 | 100 | 22 | 150 | 70 | 18 | 8.4 |
| 1-1/8 | 6.75 | 12 | 48 | 9.6 | 48 | 270 | 140 | 28 | 160 | 90 | 22 | 13.5 |
| 1-1/4 | 9.31 | 17.4 | 69.6 | 13.9 | 69.5 | 270 | 140 | 32 | 180 | 100 | 25 | 16.5 |
| 1-1/2 | 18.4 | 21 | 84 | 21 | 105 | 300 | 160 | 40 | 270 | 140 | 31 | - |
| 1-3/4 | 26.4 | 30 | 120 | 30 | 150 | 340 | 180 | 45 | 285 | 155 | 36 | - |
| 2 | 42.91 | 40 | 160 | 40 | 200 | 350 | 190 | 51 | 340 | 180 | 45 | - |
