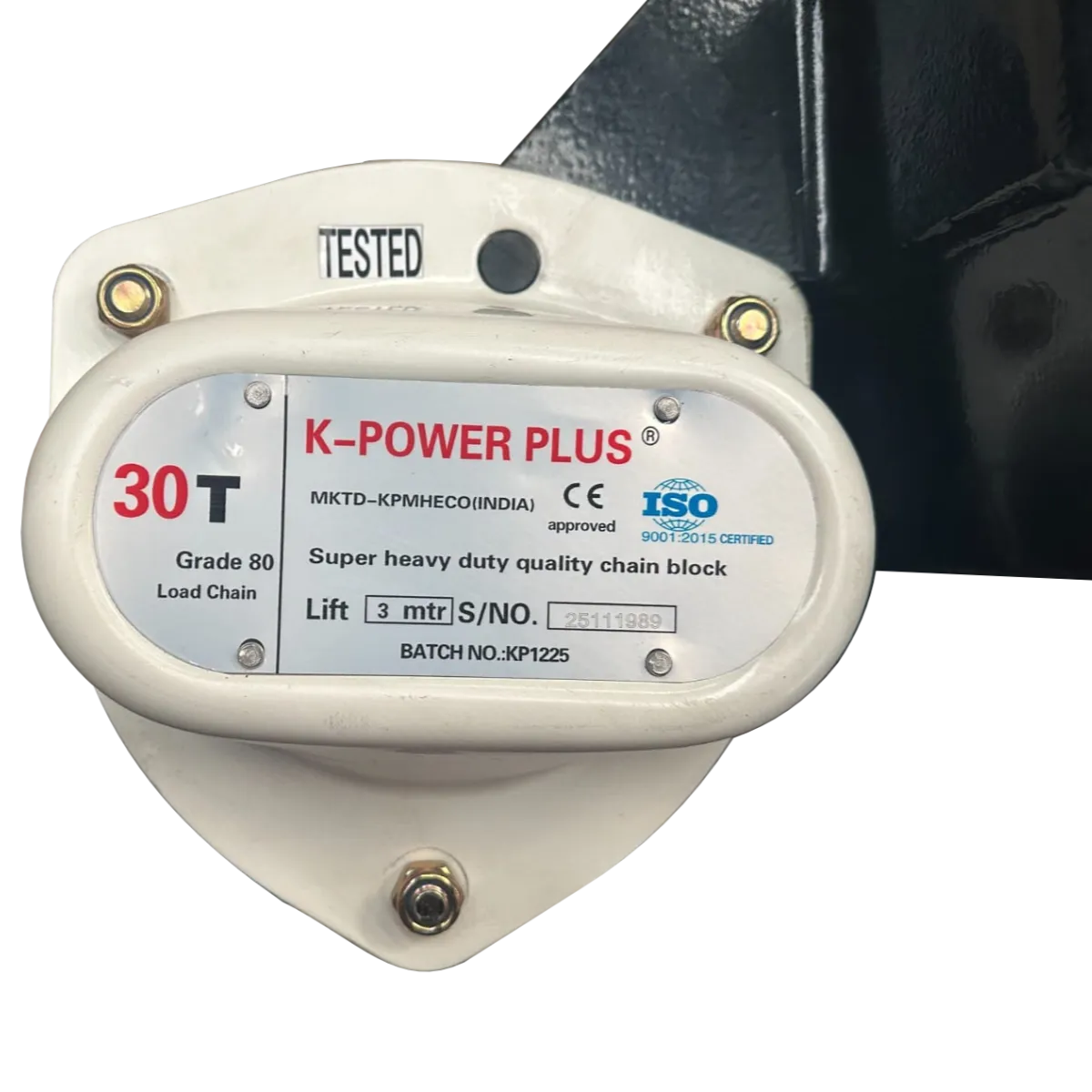

K-Power Plus Chain Pulley Block

The ISO and CE certified K-Power Plus Chain Pulley Block is a manual lifting device designed for safe and efficient handling of heavy loads. Featuring a durable chain mechanism and rugged alloy steel construction, it allows smooth lifting and lowering with minimal effort. Compact yet powerful, this pulley block is widely used in construction sites, warehouses, workshops, and industrial environments where secure load control is essential.

Key Features:

Key Features:Compact construction with minimal headroom requirement
Dual ratchet pawl system made from high-tensile steel
High-accuracy CNC-machined gearing
Self-activating mechanical brake with screw disc mechanism
Alloy steel load chain conforming to IS 3077 standards
Triple-layer protective casing for enhanced durability
Heavy-duty, thick friction disc for reliable braking
Zinc-coated hand chain manufactured as per IS 2429
Heat-treated load chain wheel as per IS 3832
Heat-treated alloy steel hook compliant with IS 15560
Fully sealed bearings to protect against dust and contaminants
Needle roller bearings for smooth and efficient operation

The K-Power Plus Chain Pulley Block combines safety, efficiency, and durability, making it an indispensable tool for professionals handling heavy‑duty lifting operations.

Description

A durable manual lifting device with a strong chain mechanism, ideal for safe and efficient heavy‑load handling.

HSZ-B chain Block

Model	0.5 TON	1 TON	1.5 TON	2 TON	3 TON	5 TON	10 TON
Standard Lift(m)	2.5	2.5	2.5	3	3	3	3.5
Test Load(t)	0.75	1.5	2.25	3	4.5	6.25	12.5
Min. distance between hooks(mm)	240	270	347	380	475	600	700
Chain pull to lift full load(n)	221	304	343	314	343	381	392
No. of load chain fall lines	1	1	1	1	2	2	4
Dimeter of load chain(mm)	6	6	8	8	8	10	10
Net weight(kg)	10	10	14	16.5	21.5	35	67
Gross Weight(kg)	10.5	10.5	14.5	17	22.5	37	71
Packing mcasurement LXWXH(cm)	27X22X19	27X22X19	33X27X23	33X27X23	33X27X23	41X31X23	53X24X24
