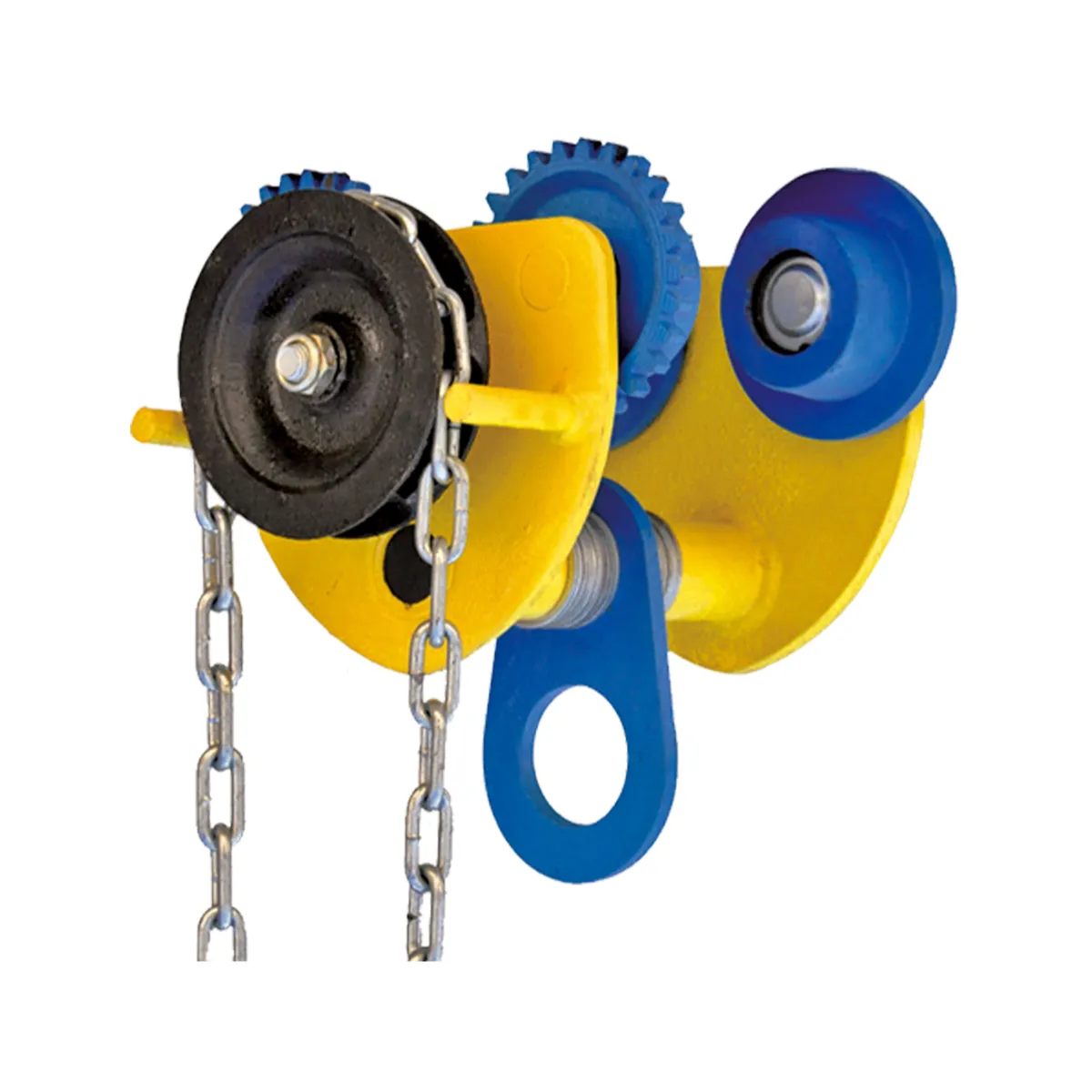

Travelling Trolley/Manual Gear Trolley

The Travelling Trolley, also known as a Manual Gear Trolley, is a reliable load‑handling device designed for smooth movement of hoists and suspended loads along I‑beam tracks. Operated by a hand chain and geared mechanism, it provides controlled horizontal travel without the need for power, making it cost‑effective and easy to use. Built from heavy‑duty steel with precision wheels, the trolley ensures stable load movement and long service life. Ideal for workshops, warehouses, and construction sites, it offers safe and efficient material handling in demanding environments.

Key Features:

  • Manual gear and hand chain operation for controlled load travel
  • Heavy‑duty steel construction for strength and durability
  • Precision wheels for smooth beam movement
  • Compact design for easy installation and operation
  • Suitable for workshops, warehouses, and industrial applications

The Travelling Trolley / Manual Gear Trolley combines safety, durability, and efficiency, making it a trusted choice for professionals handling heavy‑duty lifting tasks.

A manual gear trolley with hand chain operation, designed for smooth and safe load travel along beams.

Travelling Trolley/Manual Gear Trolley (New)

Caps. tons Fits/Beams mm Dimensions mm Minimum Revolving radius mm wt. kgs Type No.
W H
Min. Max. Min. Max. a b c d e f k
PLAIN TROLLEYS
1/2 75 125 100 150 206 174 120 45 55 27 - 900 6.0 AP-05
1 75 125 125 250 206 231 120 45 80 27 - 1300 10.0 AP-10
2 100 150 150 400 241 271 155 60 100 33 - 1500 18.5 AP-20
3 100 150 180 400 261 311 185 70 113 47 - 2000 26.0 AP-30
5 125 175 250 450 294 351 220 80 125 53 - 2600 44.0 AP-50
10 150 175 250 450 294 721 165 - 125 53 - - 96.0 AP-90
GEARED TROLLEYS
1 75 125 125 250 206 231 120 45 80 27 - 1300 14.0 AG-10
2 100 150 150 400 241 271 155 60 100 33 - 1500 23.5 AG-20
3 100 150 180 400 261 311 185 70 113 47 - 2000 33.5 AG-30
5 125 175 250 450 294 351 220 80 125 53 - 2600 53.5 AG-50
10 150 175 250 450 294 721 165 - 125 53 - - 101.0 AG-90
